Amplifier Control Board, SSPA LDMOS MOSFET, Single Band, Set of 4 Boards


Single band PA controller KIT

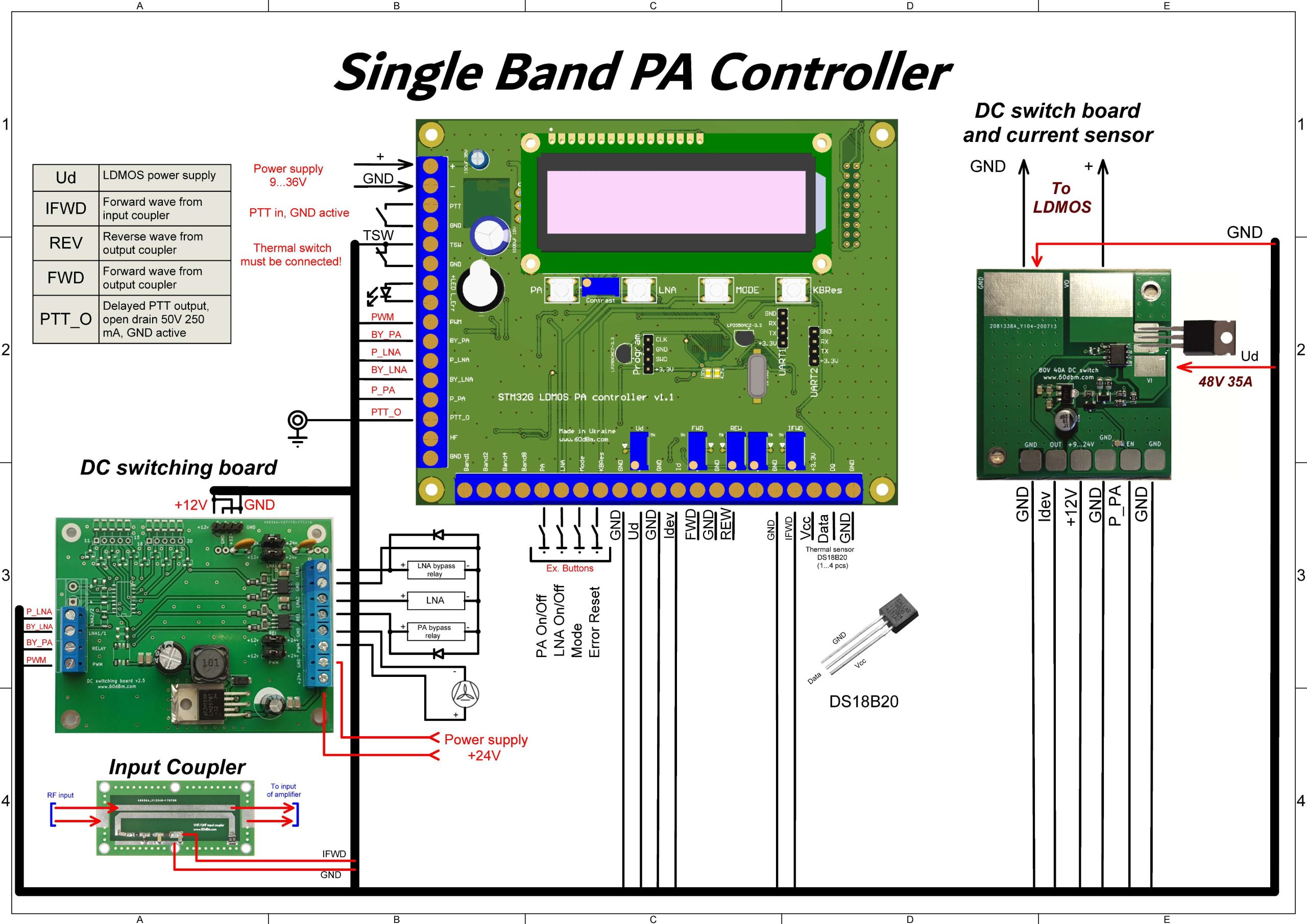

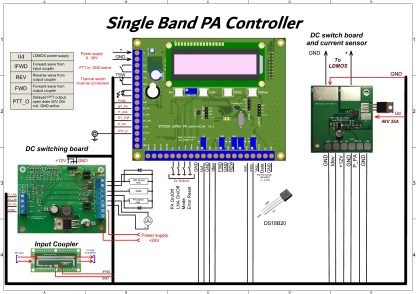

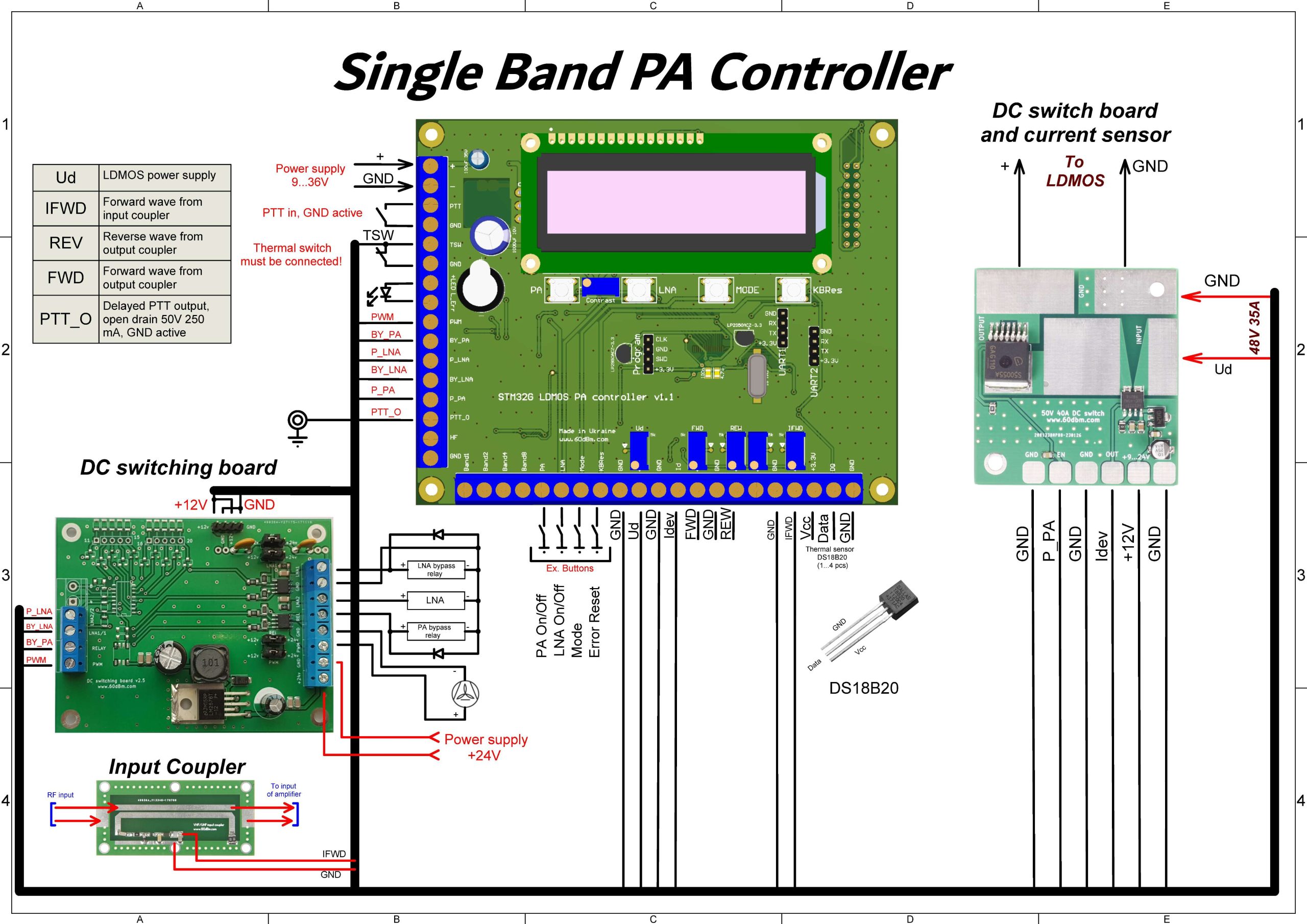

This is set of 4 boards for full control DC part of any single band LDMOS/FET/MOSFET SSPA.

– DC on/off switch and current sensor 1 or 2 – ON/OFF switch and measuring current of LDMOS power

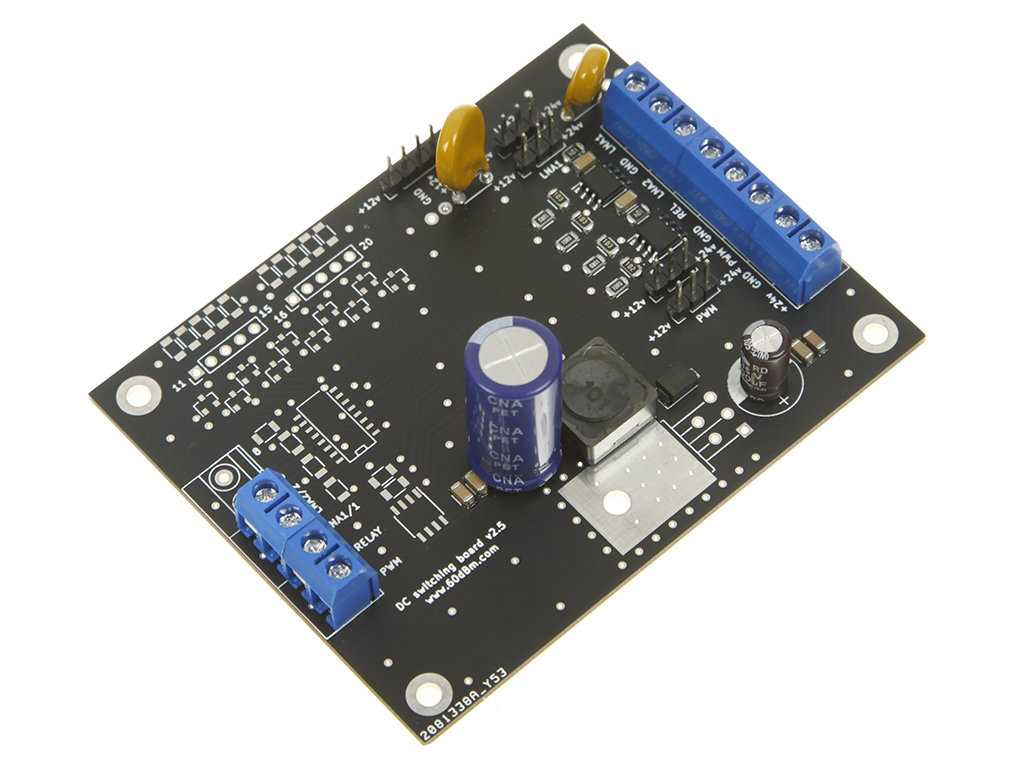

– DC switching board – MOSFET switches to control PA cooling FAN, PA bypass relays, external LNA power supply and bypass relays
– Input coupler – board for measuring input RF power

Additional information

Weight 0.2 kg


There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

PA controller doc's
