DC switch and current sensor 50V/40A


High current DC switch and current sensor

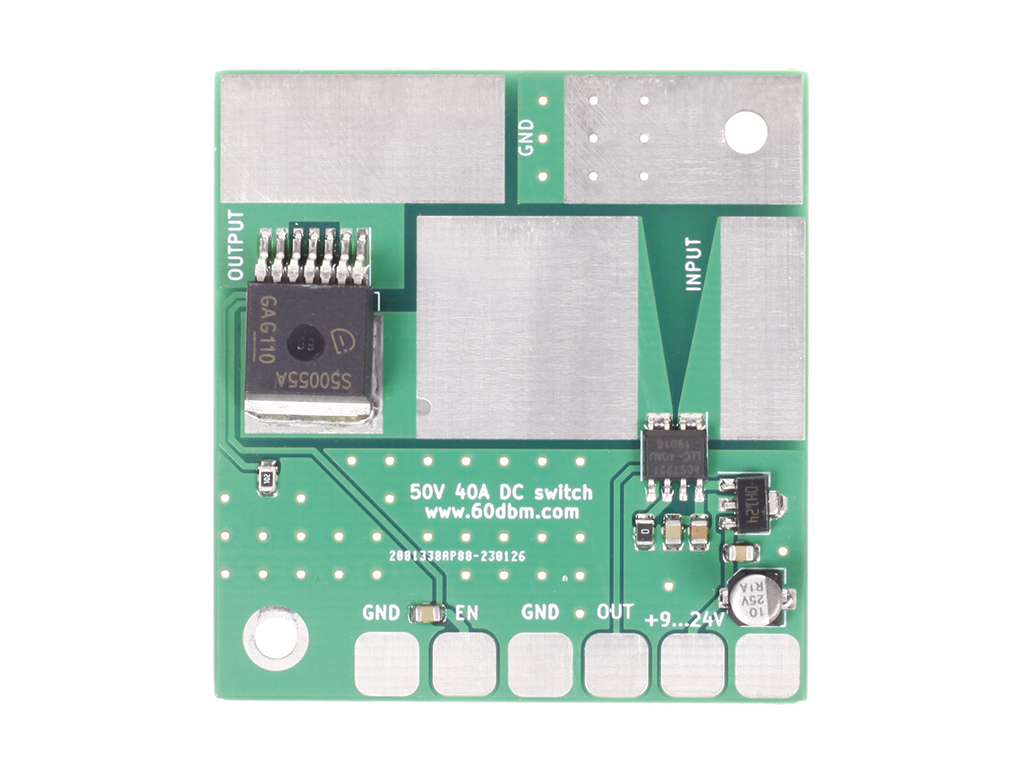

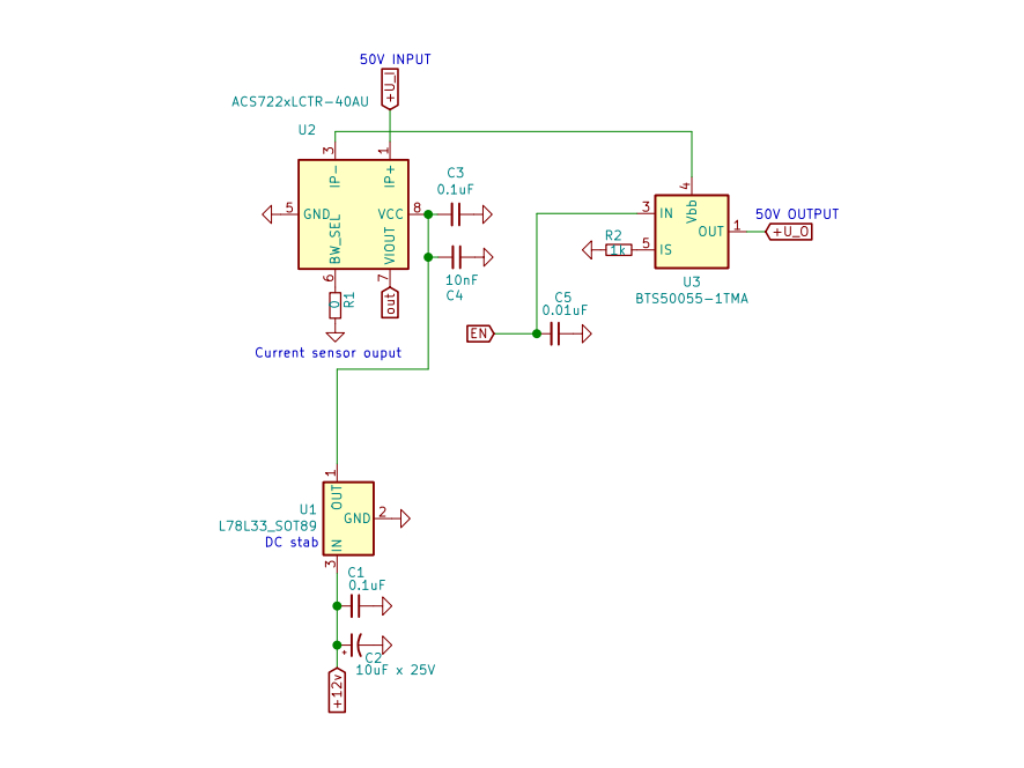

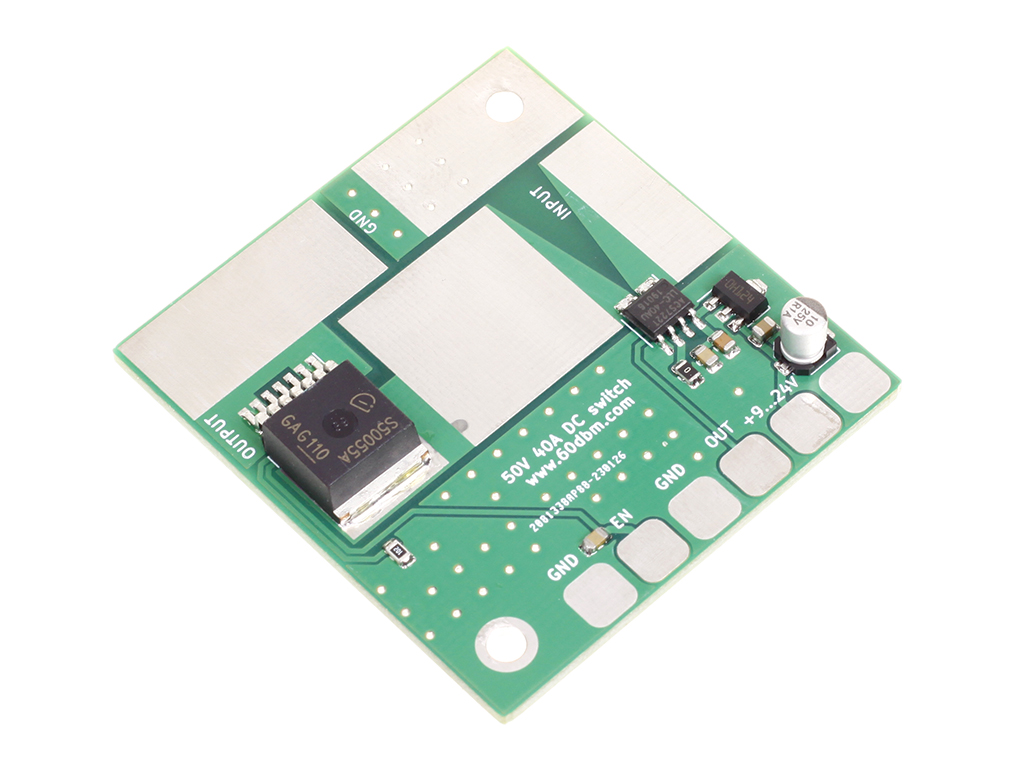

Board based on 50V/70A DC switch BTS50055 and ACS722 66mV/1A, 40A max current sensor.  DC switch can be switched ON or OFF via one (GND active) port.  Minimum input voltage is 5V, maximum input voltage is 50V. Board needs external 9-24v/100ma external supply. This board very well work with my LDMOS/MOSFET power amplifier controller’s  1

Board size is 65x65mm.


Additional information

Weight 0.012 kg
