DC switch and current sensor 85V/40A

$33.00

High current DC switch and current sensor

Description

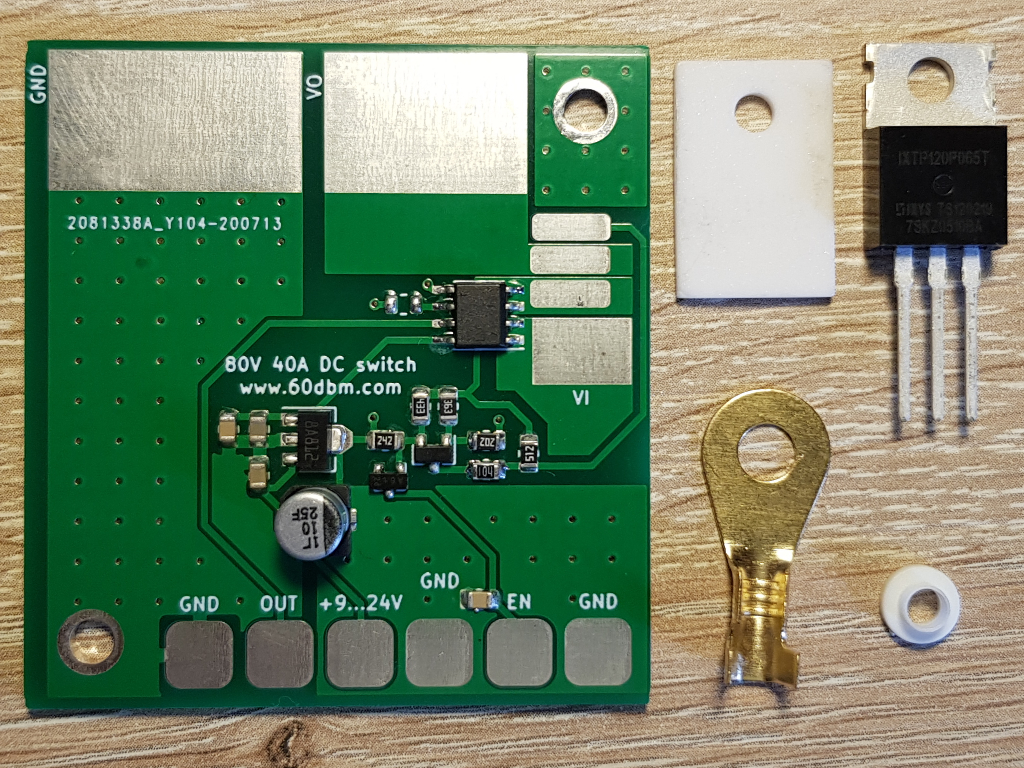

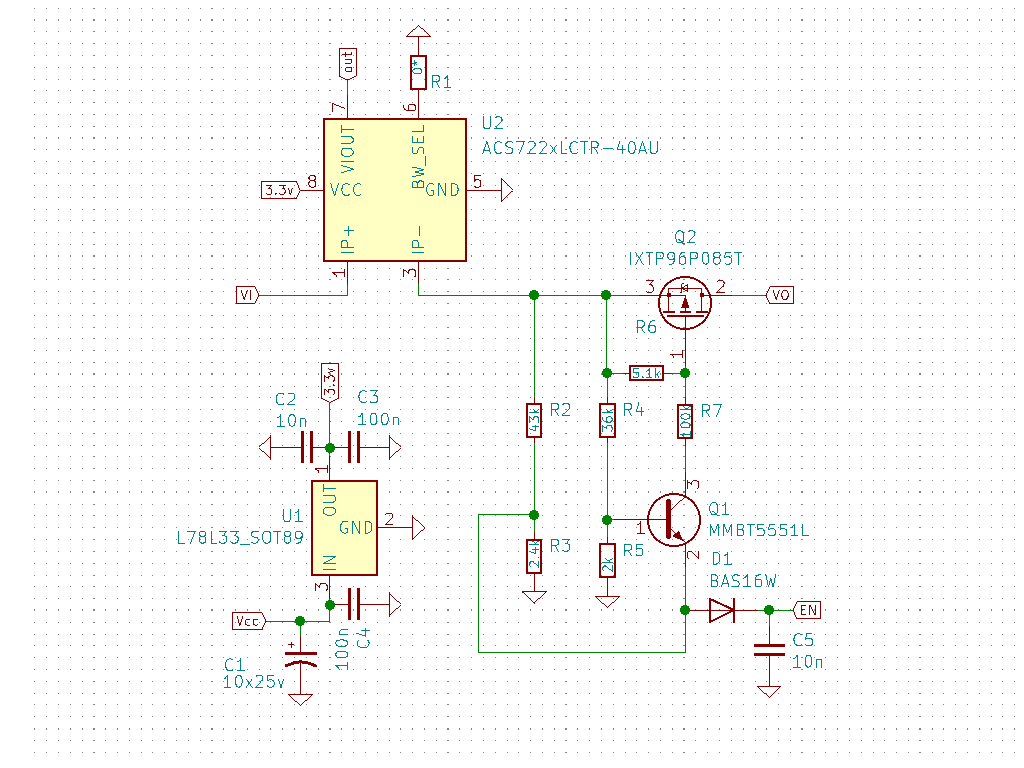

Board based on high voltage and high current IXYS P-channel MOSFET and ACS722 66mV/1A, 40A max current sensor. DC switch can be switched ON or OFF via one (GND active) port. Minimum input voltage is 50V, maximum input voltage is 85V. Board needs external 9-24v/100ma external supply and board size is 45x50mm. This board very well work with my LDMOS/MOSFET power amplifier controller’s

Board size is 65x65mm.

Additional information

Weight 0.012 kg
