1KW 432MHz Low Pass Filter, ARLON PCB

$85.00

1KW 432MHz LPF

Description

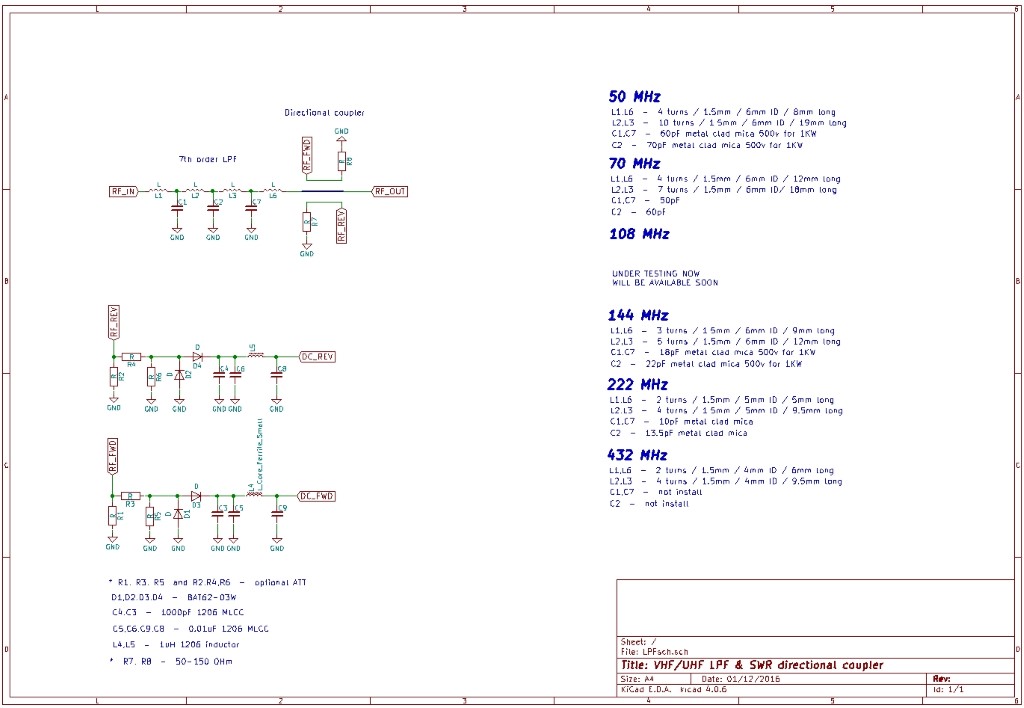

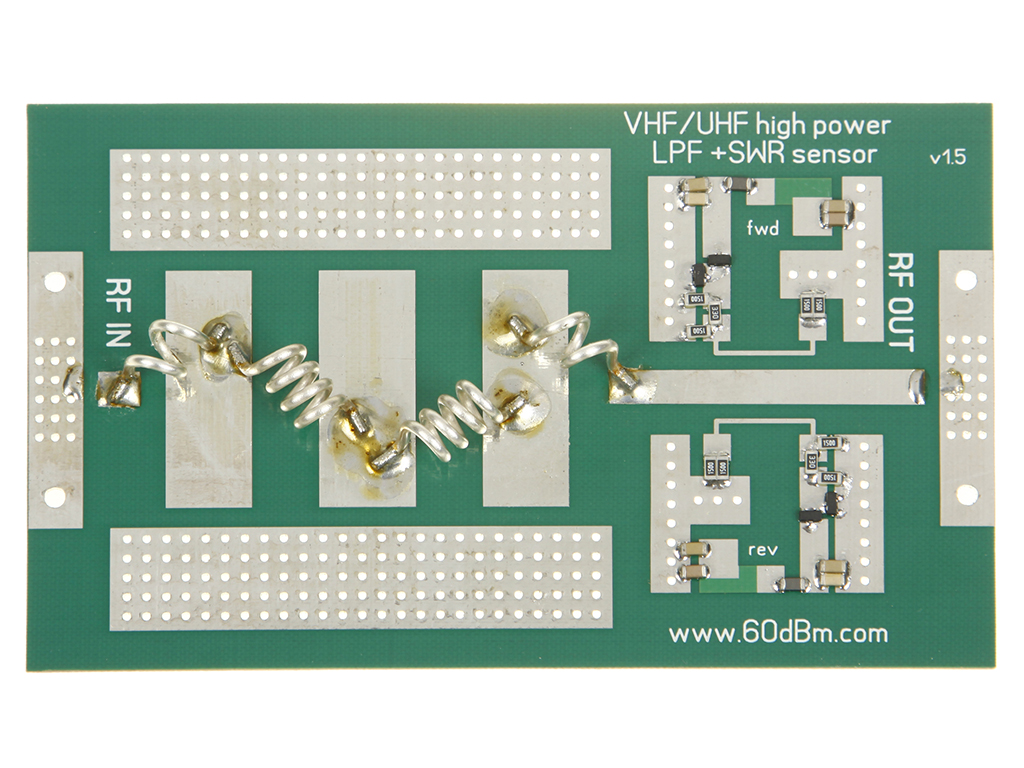

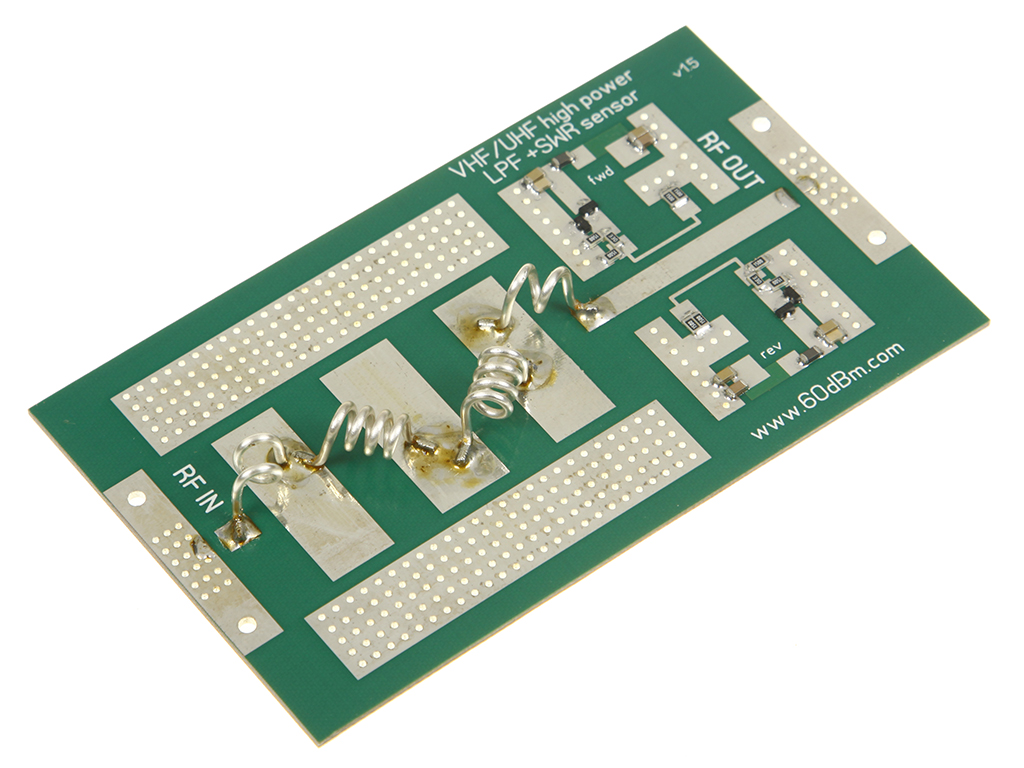

This is a Low Pass Filter for using after UHF LDMOS or TUBE power amplifier for removing harmonic. 3dB cut off frequency is 475 mHz. Insertion loss is less than 0.15 dB . Image rejection is better than 35 dB for 2nd order and better than 55 dB for 3rd order harmonics. Input and output impedance is 50 Ohm. LPF Return Loss is better than 33 dB. Long time handled power is 1kw. LPF combined with SWR directional coupler. PCB material is ARLON AD255C 60mil 1/1oz.

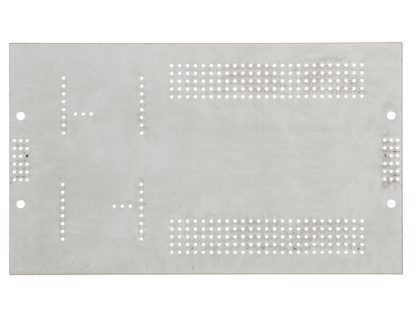

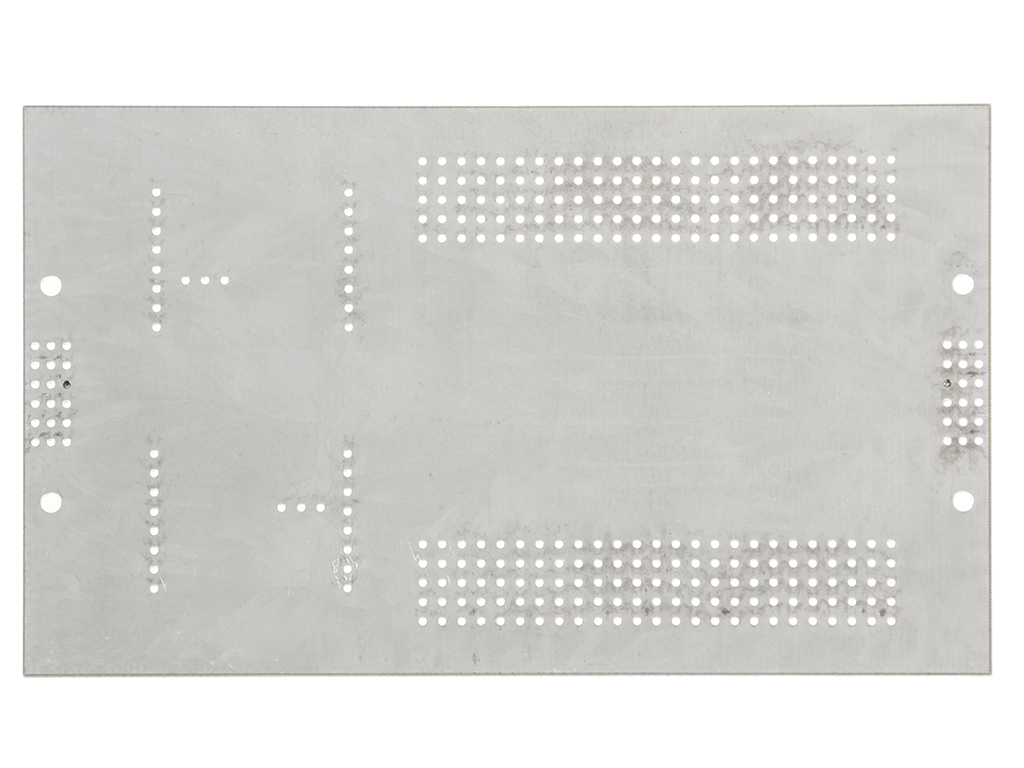

Board size is 125 x 75 mm.



LPF fully assembled, well tuned and well tested.
