Description
Application area

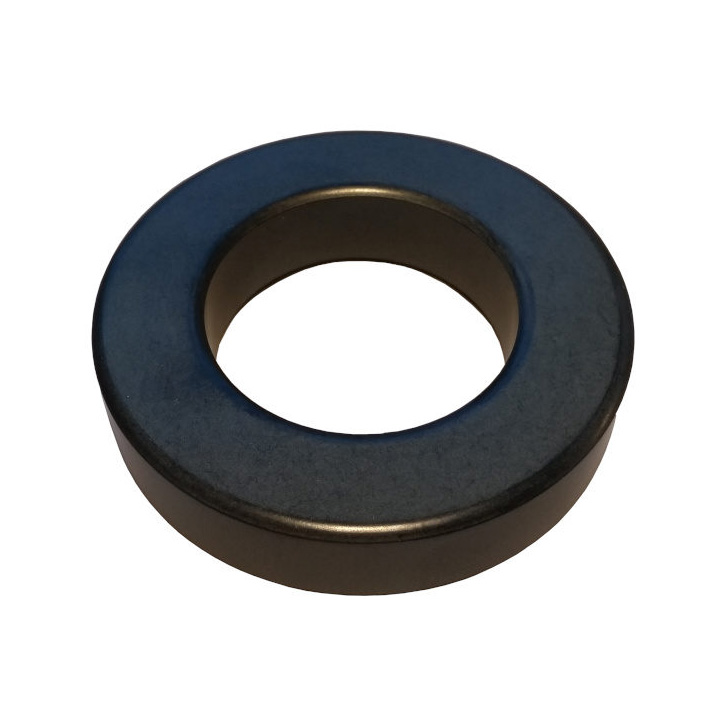

Ferrite toroids are primarily used as EMC chokes for suppressing RF interference in the MHZ region and in signal transformers.
Name | Value |
---|---|
AL(nH) | 1075 ±20% |
Ae(cm2) | 1.58 |
Σl/A(cm^-1) | 9.2 |
le(cm) | 14.5 |
Ve(cm3) | 22.8 |
Side | Value, mm | Tolerance, mm |
---|---|---|
A | 61 | ±1.3 |
B | 35.55 | ±0.85 |
C | 12.7 | ±0.5 |
