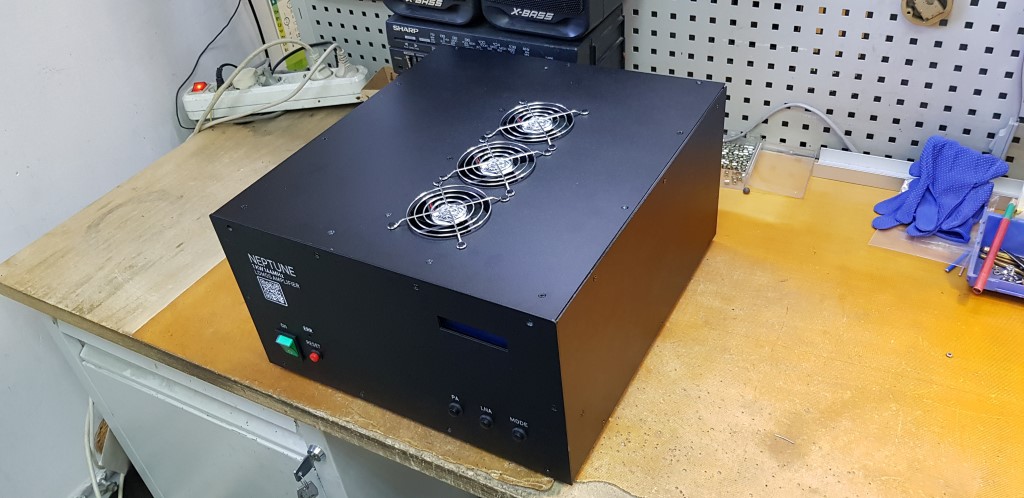

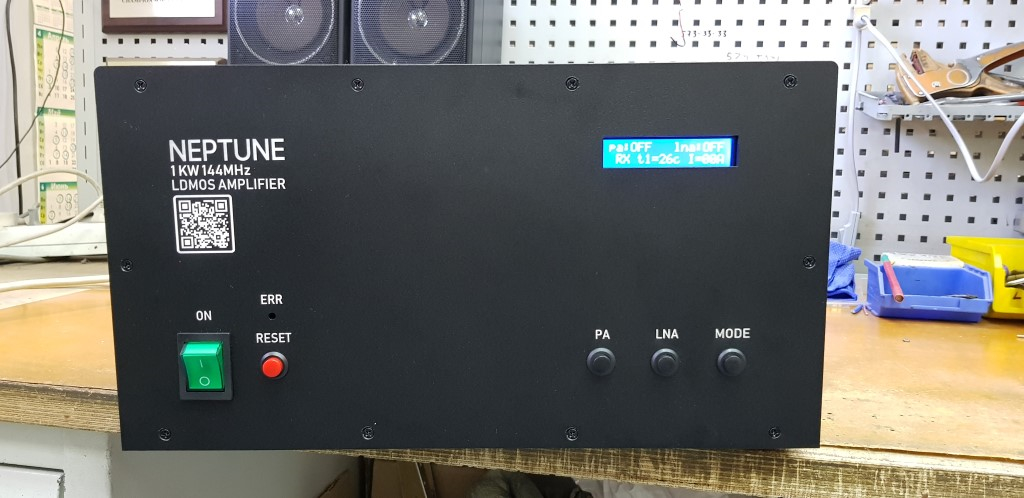

1KW 144MHz EME Power Amplifier

Description

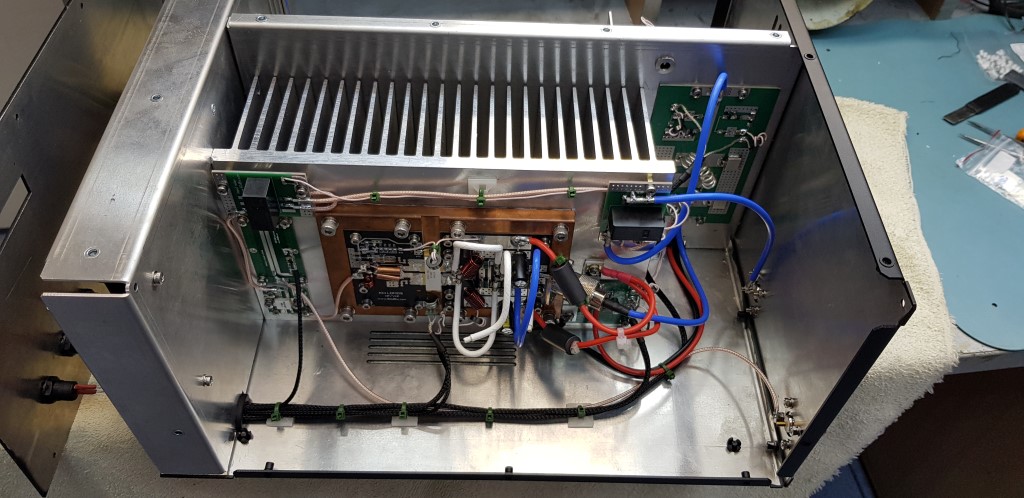

This is modern Power Amplifier based on BLF188XR LDMOS transistor.  PA has all the protection, such as

  • overheat protection
  • RF input overdrive protection
  • SWR and RF output power exceeding
  • over current protection
  • power supply voltage

PA has internal sequencer to control RX/TX switching and PA can control external LNA

  • Nominal input RF power – 5W
  • Nominal output RF power – 1000W
  • Power supply Input AC voltage – 110-240V

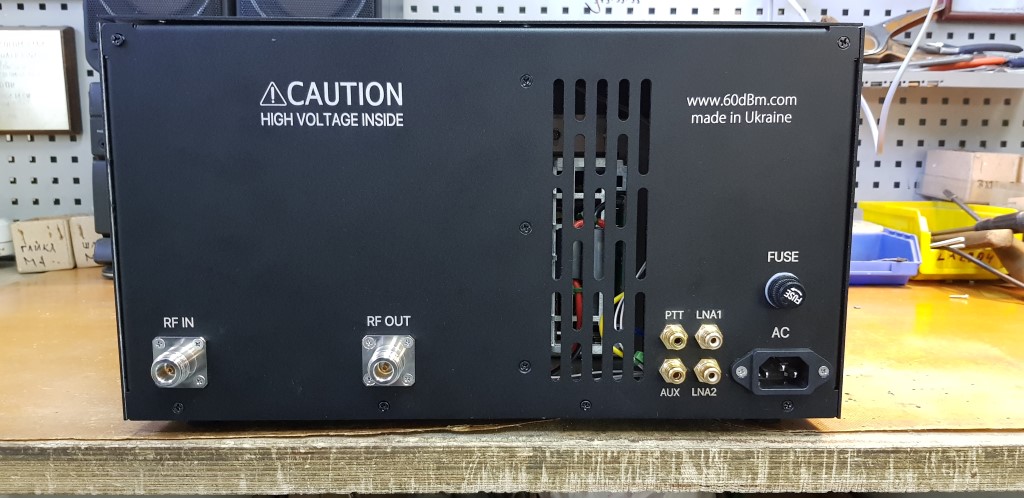

  • DC output for external RF LNA bypass relay – 12V or 24V, selectable by internal jumper, RCA female connector
  • DC output for external RF LNA  – 12V or 24V, selectable by internal jumper, RCA female connector
  • PTT input – GND active, RCA female connector
  • PTT output – with delay, sequencer delay can be adjusted via software menu, RCA female connector
  • variable FAN speed, can be adjusted via software menu
  • RF input and output impedance – 50 OHm
  • RF input and output connectors – N type
  • PA sizes – 360x200x385mm
  • Weight – 12KG

PA in stock, can be shipped next business day after payment
