Amplifier Control Board, SSPA LDMOS MOSFET FET, MULTI (HF) BAND, Set of 5 Boards

$200.00

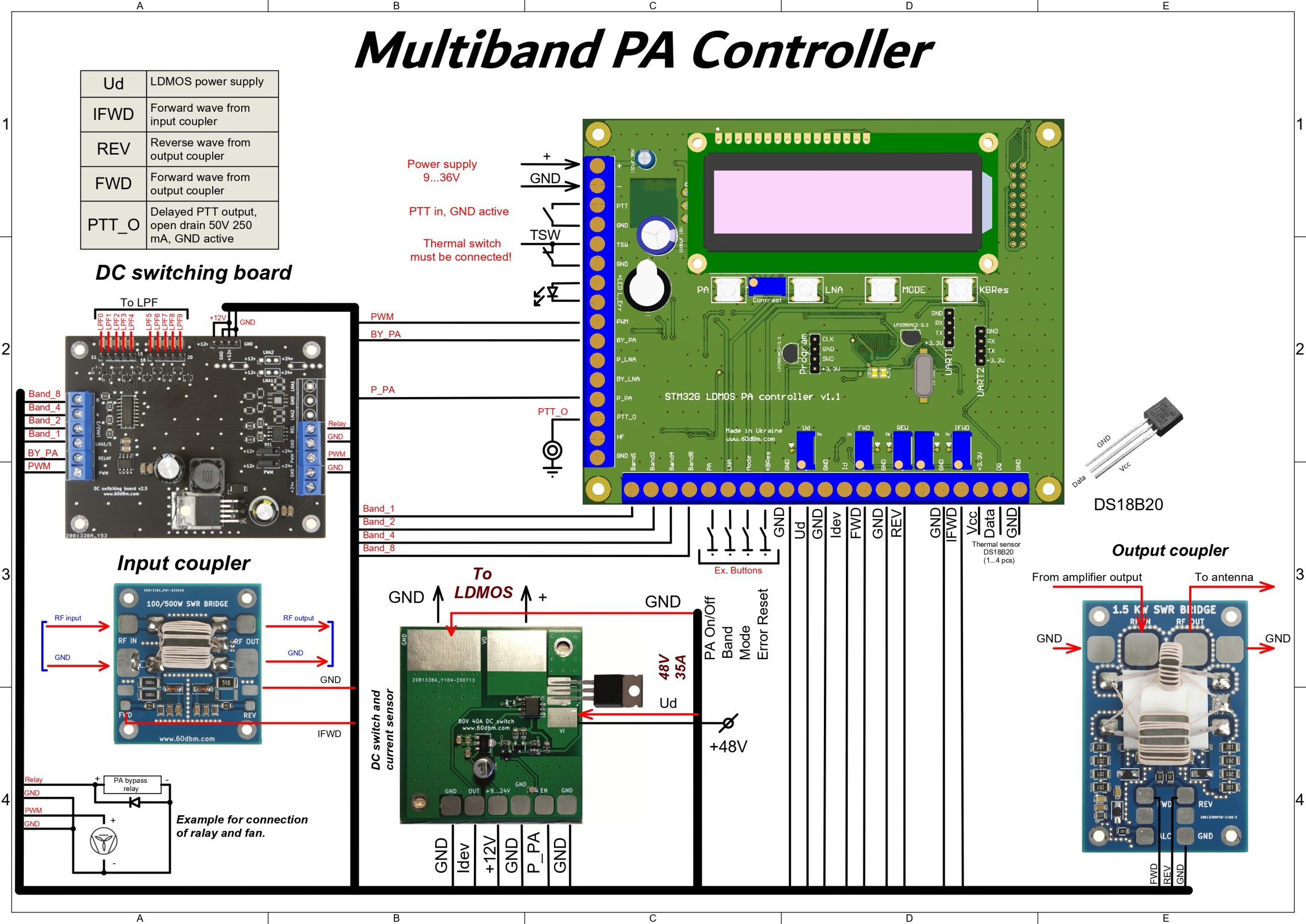

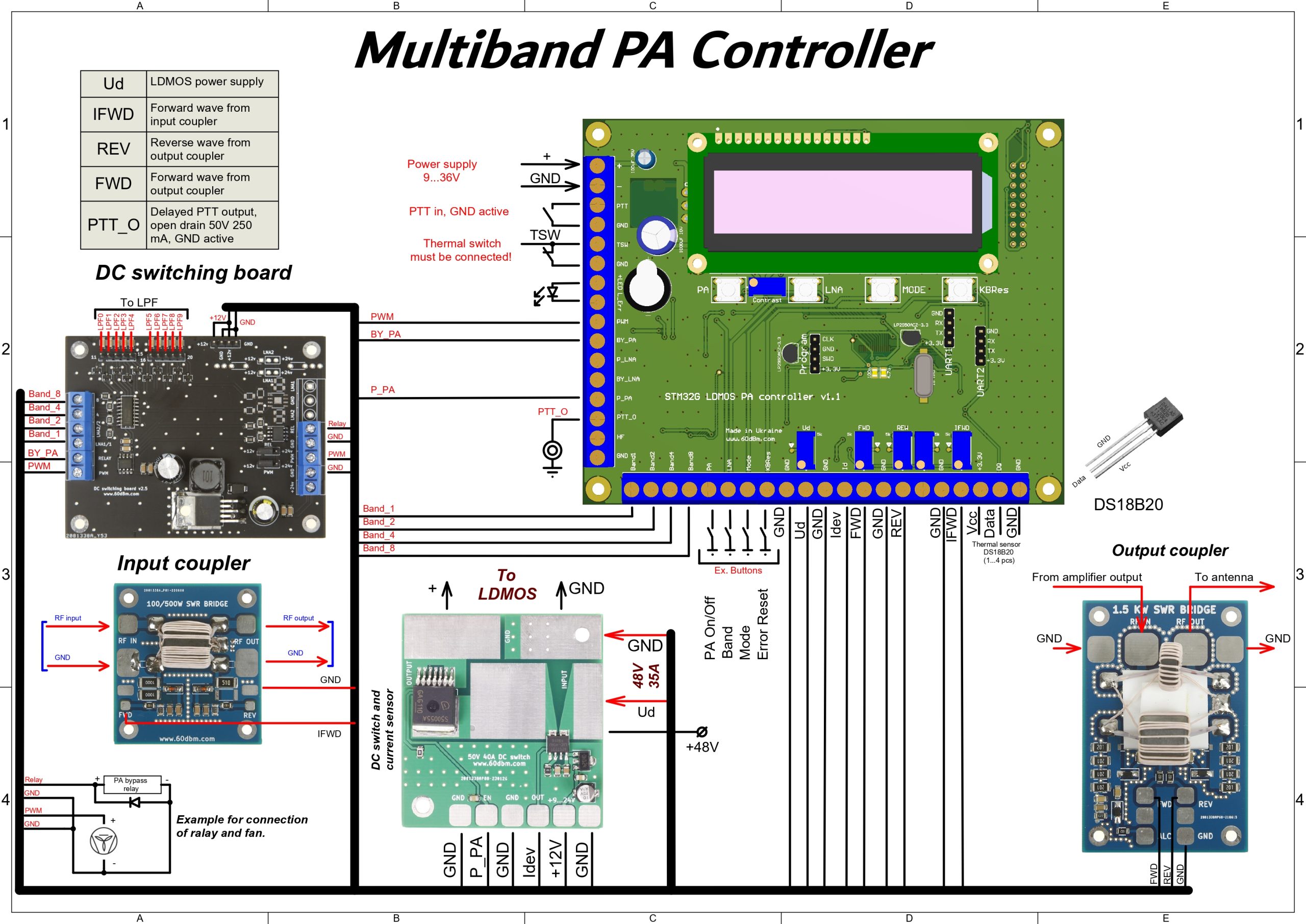

MULTI band PA controller KIT

Category:

Description

This is set of 5 boards for full control DC part of any MULTI (HF) bands LDMOS/FET/MOSFET SSPA.

– DC on/off switch and current sensor 1 or 2 – ON/OFF switch and measuring current of LDMOS power supply

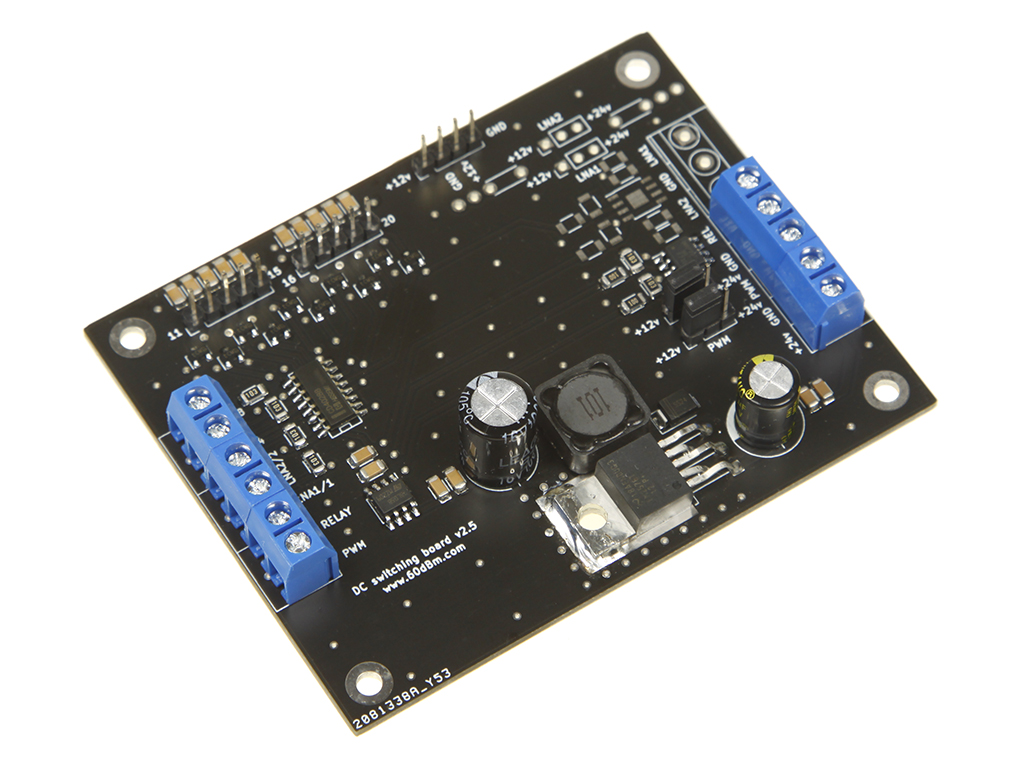

– DC switching board – MOSFET switches to control PA cooling FAN, PA bypass relays, external LNA power supply and bypass relays
Input RF coupler – board for measuring input RF power
Output RF coupler – board for measuring input RF power

Additional information

Weight 0.420 kg
