1KW 144MHz LDMOS Power Amplifier kit

$105.00

Description

LDMOS type  –  BLF578, BLF578XR, BLF188XR, MRFE6VP61K25H, MRF1K50

PCB material  –  FR4, 2oz, tin plated

RF input power  –  about 2w for 1+ kw output, LDMOS type depended

RF output power  –  1000W typical / 1300W max,  LDMOS type depended

Supply  –  50V/30A

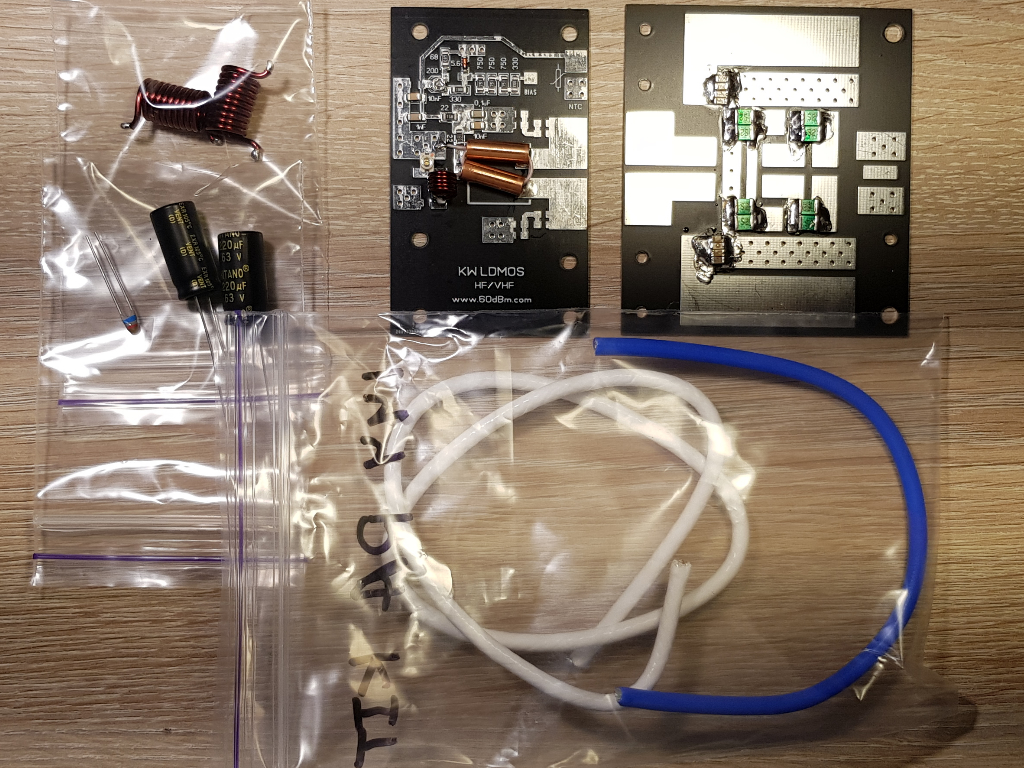

Lot doesn’t include LDMOS power transistor

You need at least power supply, control board, copper plate, output LPF to get amplifier working

Additional information

Weight 0.075 kg
